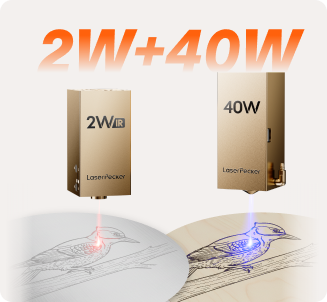

LaserPecker LX2 40W Diode & 2W IR Kit - A Ready-to-Use Dual-Laser
€2 799,00
3 398,00€
Save 599,00€
VAT Inc.
+1399
Seeds for LaserPecker members
-
Dual-Laser Versatility: Switch in seconds from 40W deep cutting to 2W IR precision marking with our tool-free, quick-swap design.
-
1000 mm/s Speed: The first enclosed laser engraver to reach this speed, fundamentally redefining batch processing efficiency.
-
Class 1 Active Safety: Pro-grade active safety system builds the ultimate end-to-end protection, from prevention to emergency response.
-
Zero-Loss Alignment: Dual-System Positioning combines physical laser accuracy with visual convenience for guaranteed single-pass alignment.
-
Maximized Space Utility: Frees up overhead space and offers a large integrated working area, with modular accessories extending application limits.
Package
40W + IR Basic Bundle
3 398,00€ 2 799,00€
Save 599€
40W + IR Rotary Bundle
4 198,00€ 2 999,00€
Save 1 199€
40W + IR Ultimate Bundle
4 998,00€ 3 599,00€
Most Picked
Save 1 399€
Frequently Bought Together
€ €
Quantity
Buy Now
Free Shipping over €59
7-Day Price Guarantee
24-hour Customer Service
Safe & Secure Checkout
highlight
Next-Level Cutting Power
Swap and Upgrade
1000 mm/s Engraving Speed
Professional Simplicity
Next-Level Cutting Power
Swap and Upgrade
1000 mm/s Engraving Speed
Professional Simplicity
Redefine High Efficiency: The Ultimate Fusion of Speed and Power
Redefine High Efficiency:
The Ultimate Fusion of Speed and Power
The Ultimate Fusion of Speed and Power

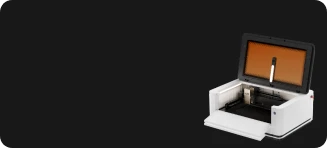

LaserPecker LX2
40W Diode & 2W IR
40W Diode & 2W IR
x
2 More Options Available
Expandable Quick-Swap
Space-Efficient Design
Flexible Dual Access Front Loading Ready
3D Adaptive Focus
Class 1 Certified
9-Fold Safety Shields
Dual-System Positioning
Point-to-Shape™ Positioning
12MP/6K HD Camera Positioning
Next-Gen Free Software
LaserPecker Design Space
Fastest Enclosed Diode

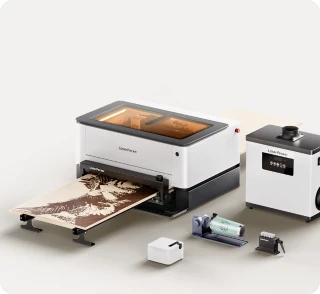

Modular Ecosystem
Every Material, Fully Covered

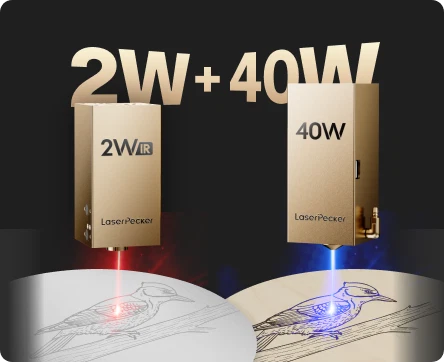

Cut Deep, Mark Fine
40W Diode Laser: Deep Cutting Redefined
Unlock CO₂-Level Power. Stop frustrating multi-passes and unleash serious production capacity. Our 40W High-Power Laser uses advanced compression technology to deliver unmatched cutting ability.
Unrivaled Single-Pass Depth
Throughput Maximized
One-Pass Forming maximizes throughput by cutting thicker materials in a single run, eliminating repetitive work to secure a 12% efficiency gain and unlock demanding project opportunities.
Sheer speed boosts your capacity to handle large orders easily, achieving high throughput rates like cutting 3mm wood at 17.5mm/s or 10mm at 5mm/s.

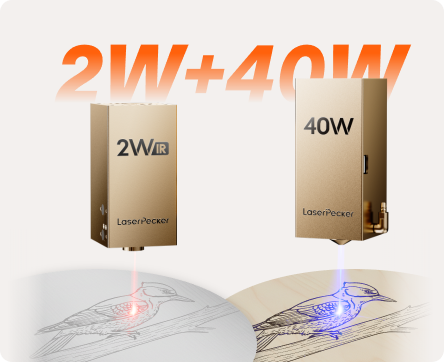

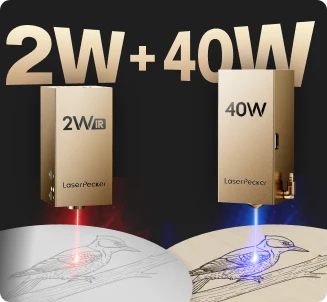

2W IR Laser: Master Of Metal & Detail
Experience permanent, high-quality marks on all metals, plastics, and acrylics. Our laser delivers ultra-fine 32×40µm detail—perfect for demanding applications from photo printing, business card etching to intricate jewelry customization.

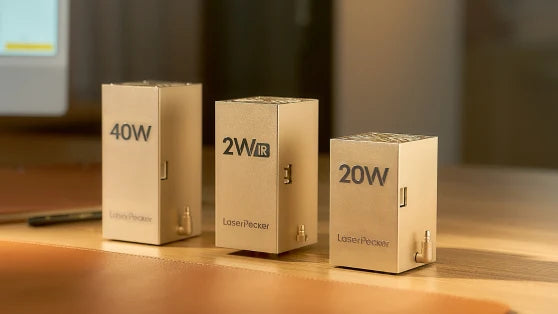

Tool-Free, Modular Swap
Get the ultimate all-in-one laser solution. Our modular design features four specialized heads that swap in seconds. Each head utilizes a precise wedge-lock mechanism that securely clicks into place with a simple press-fit action—no screws, truly tool-free. This seamless, instant capability eliminates the need for multiple machines and the associated downtime.
Pro-Grade Laser System
Beyond Standard, Total Control

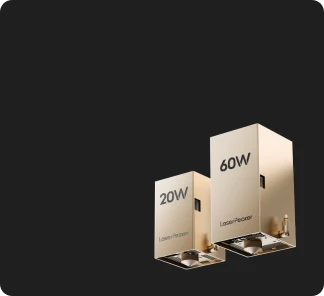

Customize Your Power: 2 More Options
Easily scale your production by purchasing the 20W or 60W laser heads separately. Choose the 20W for detailed, fine wood engraving, or jump to the 60W for your heaviest cutting and demanding professional projects.
12mm wood, one pass
22mm wood, one pass
25mm wood, one pass
Metal
20W Diode
40W Diode
60W Diode
2W Infrared
Detailed Engraving
Baseline!
High-Volume Cutting
Ultra-Fine Metal Marking
The ideal choice for detailed, fine wood engraving and precision work where delicate results are paramount.
Excellent balance of speed and cutting ability for most hobbyist and small business needs.
Jump to the ultimate power for your heaviest cutting needs and most demanding professional projects, maximizing throughput.
Specializing in permanent, high-contrast marking and precise engraving on challenging materials like metals and plastics.

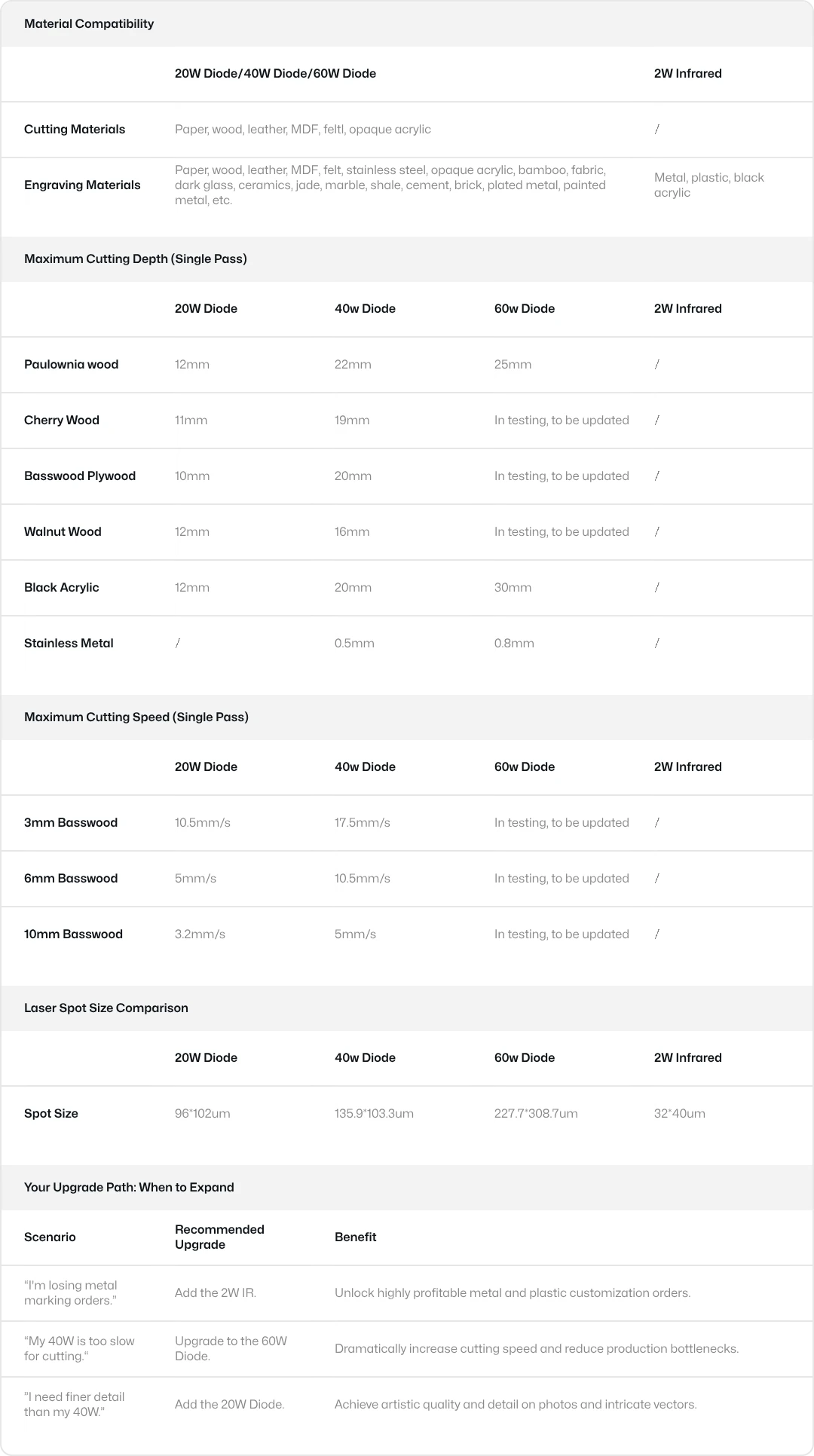

Your Detailed Comparison Guide
Find Your Perfect Power Match

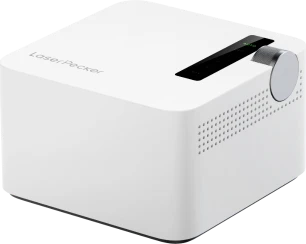

Smart Air Assist
Featuring four levels of intelligent airflow, our integrated air assist dramatically improves processing quality—especially when paired with the high-power lasers—by actively reducing burn marks and smudging. By preventing debris buildup on the lens, it also extends core component life, ensuring long-term reliability and saving you time and money on maintenance.

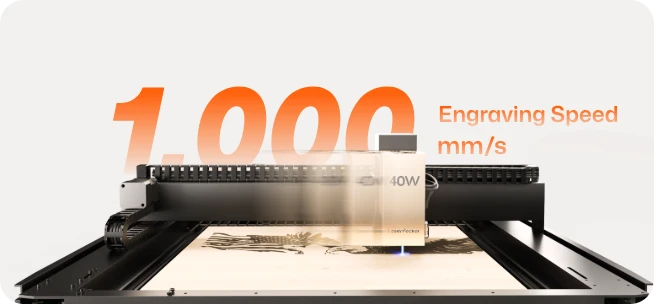

First of Its Kind
Fastest
Enclosed Production

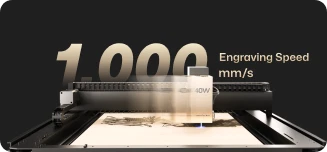

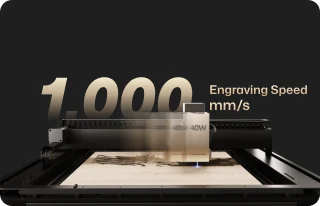

Unlock explosive productivity with the world‘s first enclosed diode laser that achieves a maximum 1000 mm/s engraving speed and a blistering 10,000 mm/s² acceleration. This immense acceleration means reaching top speed faster, saving you crucial time with every start, stop, and direction change in your workflow. This proven 35% gain in overall speed is transforming workflow efficiency from the ground up.
35% Faster: How?
We brought industrial precision to your desktop through a robust dual Y-axis and linear guide motion system, delivering greater power to smoothly drive heavier, high-performance laser heads. All axes work in perfect synchronization, ensuring “rock-solid stability” and “pinpoint accuracy” even at extreme speeds. Our pursuit of superior performance through refined engineering and software enables industry-leading speed and reliability.
The Reliable Path to Growth
By drastically cutting time on high-volume orders, LX2 enables you to shorten delivery cycles, confidently take on more orders, and increase revenue. Best of all, industrial-grade guides ensure unmatched durability, guaranteeing low maintenance costs and a reliable, high-quality production experience for years to come.
Align Your Way

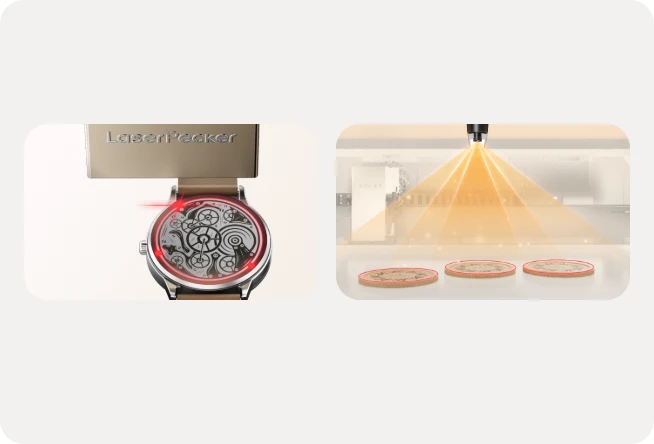

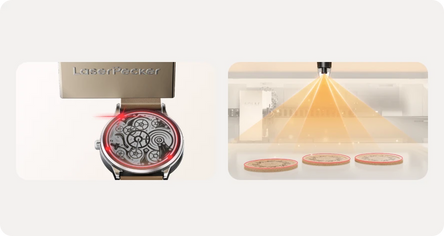

Dual-System Positioning
Eliminate material waste and tedious alignment with the revolutionary Dual-Positioning System, providing both absolute precision and streamlined speed. This world-first system integrates both physical laser alignment and a 12MP/6K HD Camera visual system, letting you select the best method for your project.
What Else Can the Camera Do?
Point-to-Shape™ Positioning
For critical accuracy, this physical positioning guarantees absolute coordinate alignment without any distortion, ensuring perfect execution for micro-engraving and achieving 10x higher precision than standard systems.
Camera Positioning
For rapid batch work, this visual positioning provides a true "what you see is what you get" experience. Simply place your materials inside and let the camera do the rest.
Point-to-Shape™ Positioning
Camera Positioning
For critical accuracy, this physical positioning guarantees absolute coordinate alignment without any distortion, ensuring perfect execution for micro-engraving and achieving 10x higher precision than standard systems.
For rapid batch work, this visual positioning provides a true "what you see is what you get" experience. Simply place your materials inside and let the camera do the rest.
Camera-Enabled Smart Features
Smart Fill
The camera system supports one-click automation for batch project setup, saving you enormous amounts of time.
Remote Live-View
Monitor processing status directly from your phone or desktop, ensuring complete peace of mind during production.
Pack More, Need Less
From
Space-Saving to
High-Volume

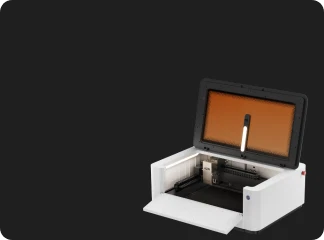

Space-Efficient Design
Stop sacrificing workspace. This machine integrates a massive 500×305mm engraving area into a space-efficient chassis. The dual-access design (top lid and front opening) revolutionizes material handling by enabling front loading, which frees up valuable overhead space—perfect for studios or classrooms. Capable of handling full-sized signage or high-volume batches, this design simplifies cleanup and boosts your daily efficiency, ensuring a high-performing machine fits perfectly into your environment.

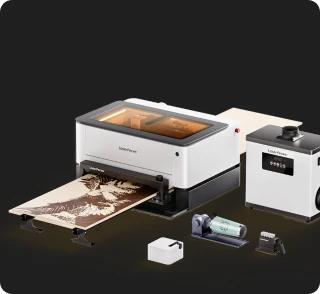

Accessories for Expanded Capability
These accessories extend material size compatibility, allowing your machine to handle far more complex and profitable jobs:
Master 360° Curvature
Any Surface,
Flawless
Engraving

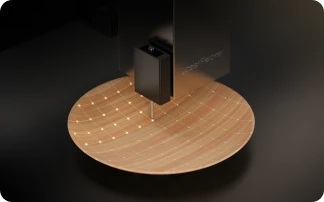

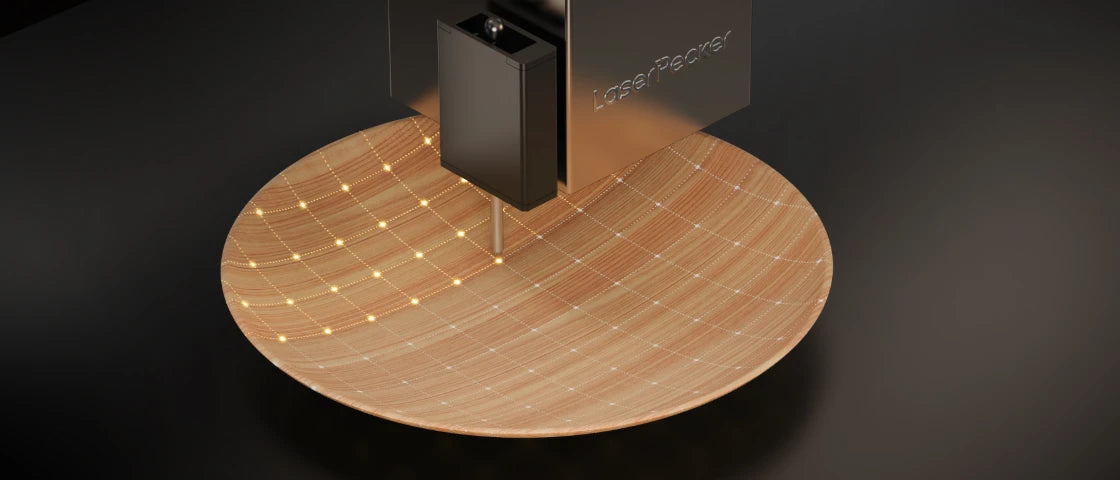

3D Adaptive Focus
Break free from flat surfaces. Our 3D Surface Adaptive Auto-Focus makes complex curved engraving simple. Assisted by the camera for initial alignment, the probe automatically scans and creates a 3D height map, dynamically adjusting the laser height in real-time. This eliminates manual focus and trial runs, saving significant time while dramatically expanding your creative boundaries to objects like bowls and custom glassware.
Rotary Extension
The Rotary Extension enables full 360-degree creative processing, handling objects from 3mm to 200mm in diameter. It greatly expands the range of shapes and materials you can work with, while its simple and stable setup ensures precise rotation—unlocking more diverse and profitable customization opportunities.
With the ability to visualize the final result before engraving, it significantly reduces the learning curve by eliminating material waste. The system automatically processes the seamless wrap-around engraving path to achieve perfect, one-pass circular engraving every time, boosting efficiency.

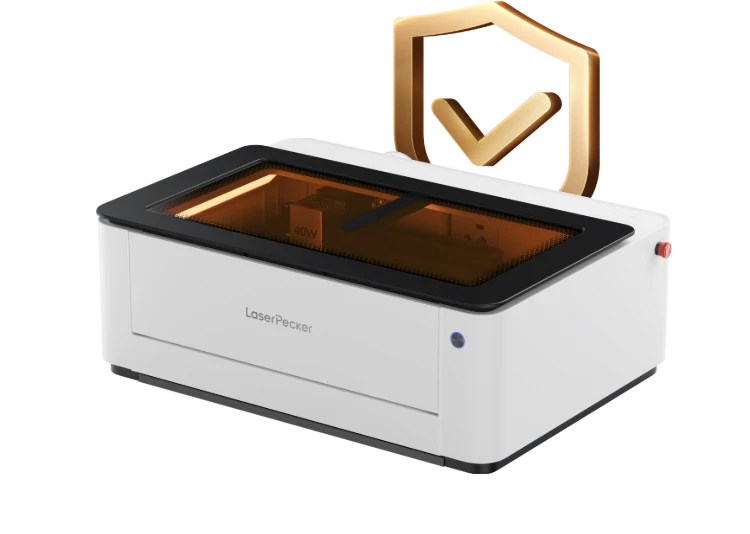

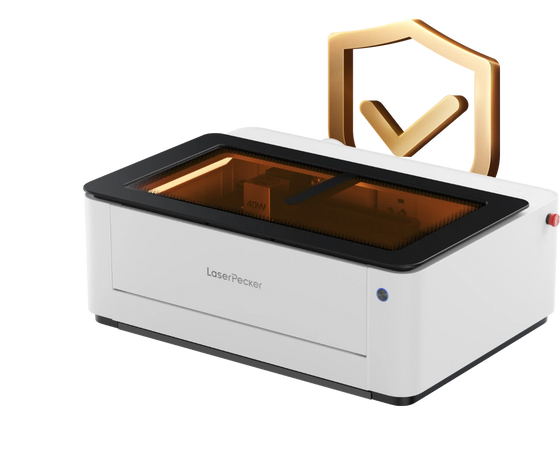

Class 1 Certified
Pro-Grade Active Safety
Total Protection, Built-In
Create with confidence under a Class 1 Certified laser system. Our fully enclosed design features proactive Nine-Fold Safety Shields*—integrating flame detection, automatic shut-off, tilt protection, and 99.99% effective dual light filtration. This multi-layered framework ensures total peace of mind, making it safe for homes, classrooms, and offices.
*Safety Key, Dual Door Detection, Material Presence Detection, Flame Detection and Auto-Extinguisher System, Temperature Detection, Emergency Stop Button, 99.99% Dual Light Filtration Safety Shield, Real-time Progress Feedback, Tilt Detection
Accessories for Maximum Safety
For complete protection, enhance the built-in Nine-Fold Safety Shields with two dedicated accessories:
Smoke Purifier
The Smoke Purifier ensures a healthy, clean environment with a 4-stage filtration system (oversized HEPA + activated carbon), achieving 99.97% efficiency against particles as small as 0.3μm. Its extra-large filter extends service life, reducing costs, while operating quietly at ≤61 dB. Built-in smart reminders and a timer provide added convenience.
Fire Safety Set
The fully automatic Fire Safety Set elevates your peace of mind. Its sealed aerosol and dual-trigger mechanism (Flame Detection + 170°C High-Temperature) ensure rapid, reliable response. This double-sensor design provides uninterrupted protection, even when unattended, safeguarding equipment and property from major loss.
NOTE: While these measures significantly boost safety, 100% fire prevention cannot be guaranteed. Always operate your laser according to safety guidelines.

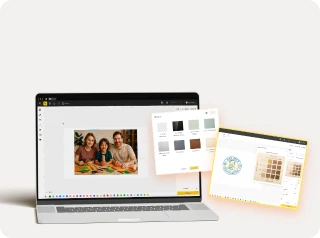

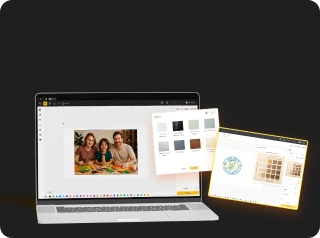

Next-Gen Free Software
LaserPecker
Design Space Beta
LaserPecker Design Space Beta is the next-generation software platform, optimized specifically for LX2. This version introduces an Accelerated Rendering Engine for significantly faster graphic manipulation and a Multi-Process Architecture to reliably handle large, complex projects. It also features Vector Font Technology to ensure perfectly stable and accurate text engraving output. This new architecture delivers a smoother, faster, and more professional engraving experience.
Compatible with LightBurn
Ready to go with LightBurn. Start creating immediately using the industry's professional standard laser software.
Smart Material Library
Instant access to optimized settings—start engraving with a single click.
Instant Puzzle Creator
Turn any photo into a custom jigsaw layout in seconds.
Smart Material Library
Instant Puzzle Creator
Instant access to optimized settings—start engraving with a single click.
Turn any photo into a custom jigsaw layout in seconds.
Package List
LX2 Main Unit × 1
AC Power Adapter × 1
USB-A to USB-C
Cable (1.5 m) × 1
Cable (1.5 m) × 1
Safety Key × 2
Laser Module × 1

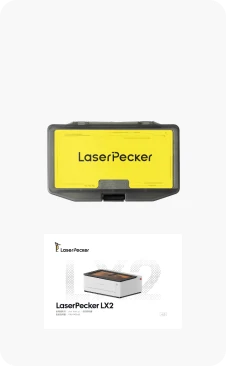

Tool Box × 1
User Manual × 1
User Manual × 1
Smoke Exhaust Pipe × 1
Slats × 4
Material Pack × 1
Specifications
Product Information
Product Size
Main Unit: 779.5mm × 609.2mm × 281.15mm
20W Diode Laser: 114 mm × 77.4 mm × 72 mm
40W Diode Laser: 152.2 mm × 77.4 mm × 72 mm
2W Diode Laser: 135 mm × 72 mm × 65 mm
20W Diode Laser: 114 mm × 77.4 mm × 72 mm
40W Diode Laser: 152.2 mm × 77.4 mm × 72 mm
2W Diode Laser: 135 mm × 72 mm × 65 mm
Product Weight
Main Unit: 22.5 kg
20W Diode Laser: 554 g
40W Diode Laser: 766 g
2W IR Laser: 750 g
20W Diode Laser: 554 g
40W Diode Laser: 766 g
2W IR Laser: 750 g
Laser Type
20W Diode Laser
40W Diode Laser
60W Diode Laser (coming soon)
2W Infrared Laser
40W Diode Laser
60W Diode Laser (coming soon)
2W Infrared Laser
Supported Materials
Stainless Steel, Aluminum, Brass, Silver, Plastic, Platinum, Titanium, Wood, Acrylic, Leather, Glass, Rock, Paper, Rubber
Working Area
500 mm × 305 mm
Max. Working Speed
1000 mm/s @ 10,000 mm/s² acceleration
Cutting Depth (40W)
Up to 22mm Paulownia
Up to 19mm Cherry wood
Up to 20mm Acrylic
Up to 0.5mm Stainless steel
Up to 19mm Cherry wood
Up to 20mm Acrylic
Up to 0.5mm Stainless steel
Max. Processing Height
Standard: Ø45 mm
With Optional Riser Base: Ø150 mm
With Optional Riser Base: Ø150 mm
Max. Rotary Engraving Diameter
Ø130mm
(Requires installation of the optional riser base)
(Requires installation of the optional riser base)
